Build an ADS Limited project using SmartCode as an external toolchain

The Infineon AURIX Development Studio (ADS) Limited includes a SmartCode version for evaluation purposes. To build ADS Limited projects using, for example, a newer evaluation version of the SmartCode product or a commercial version, you can configure SmartCode as an external toolchain.

Prerequisites

• Install SmartCode.
• Install ADS Limited software.

Locate the licopt.txt file in the /etc sub-directory of the SmartCode installation directory and copy it into the following directory, replacing the existing file.
C:\Infineon\AURIX-Studio-limited-1.9.22-L\plugins\com.infineon.aurix.ads.tc4xx.tools_1.9.22 \build_system\tools\Compilers\Tasking_10.1r1\etc

Steps to build an ADS Limited project using an external SmartCode installation

Perform the below steps within the ADS Limited Eclipse environment:

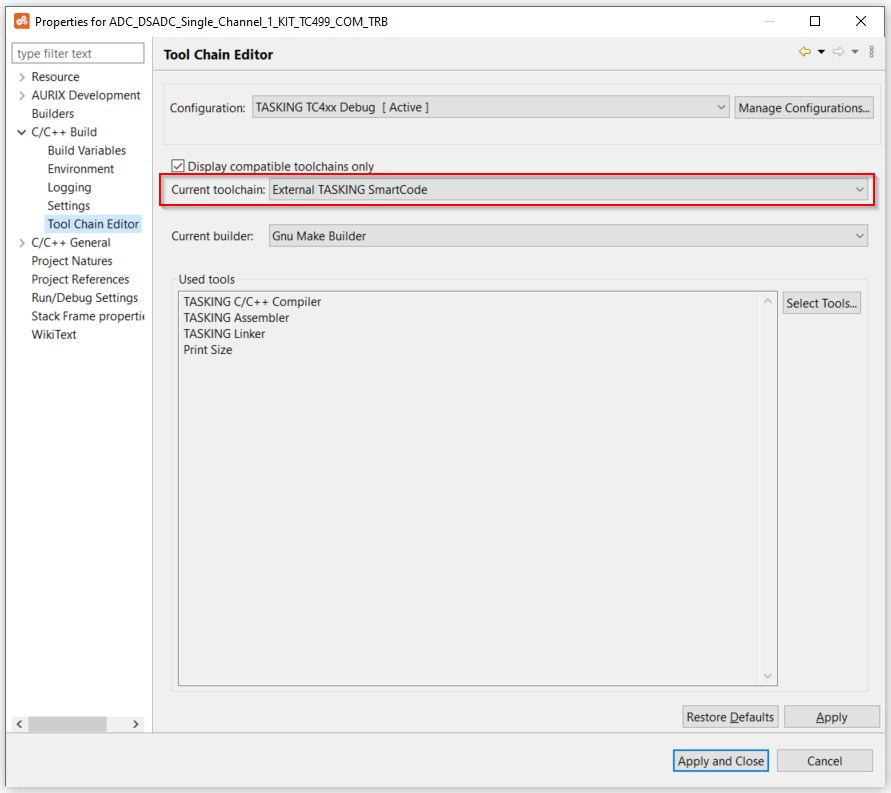

1. Select Project | Properties | C/C++ Build | Tool Chain Editor to change the Current toolchain to External TASKING SmartCode

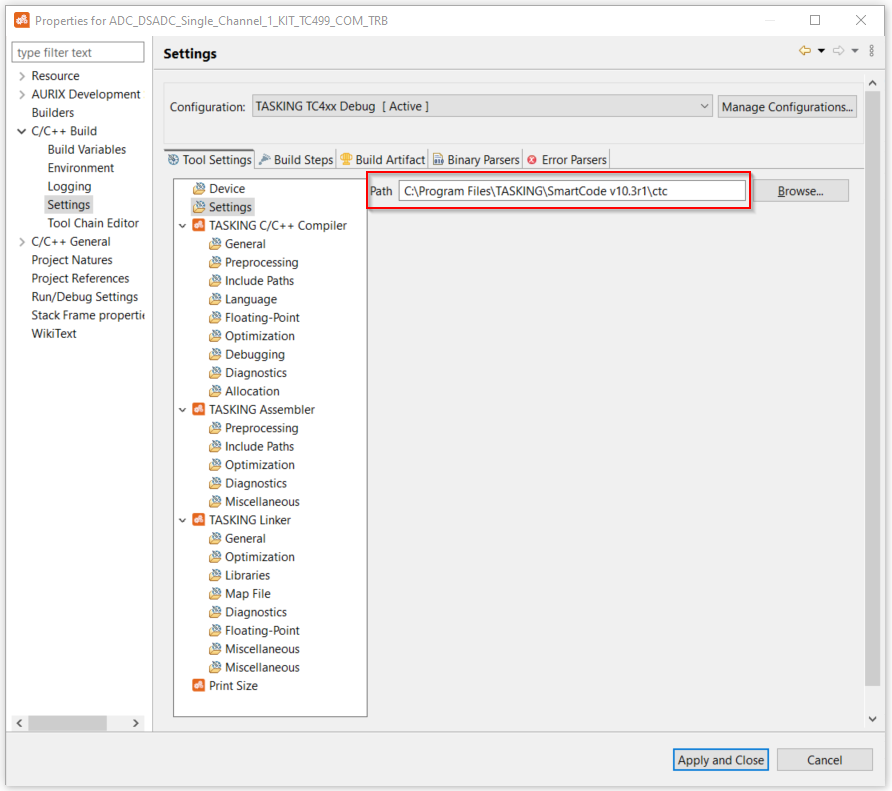

2. Select Project | Properties | C/C++ Build | Settings | Tool Settings | Settings and under Path settings in the menu, enter the path to the \ctc sub-directory of the  SmartCode installation. The below screenshot depicts the settings for SmartCode v10.3r1.

3. When SmartCode v10.2r1 or higher is used:

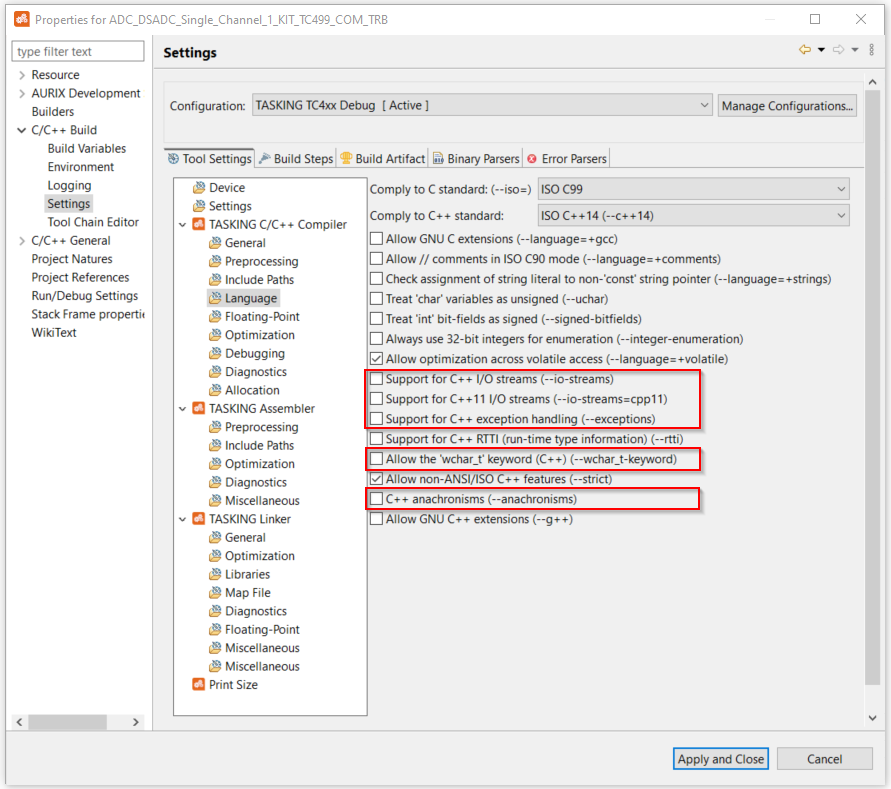

    a. Select Project | Properties | C/C++ Build | Settings | Tool Settings | TASKING C/C++ Compiler | Language

    b. Ensure the following checkboxes are disabled, as these options have been discontinued since SmartCode v10.2r1.

           Support for C++ I/O streams (--io-streams)

           Support for C++11 I/O streams (--io-streams=cpp11)

           Support for C++ exception handling (--exceptions)

           Allow the 'wchar_t' keyword(C++) (--wchar_t-keyword)

           C++ anachronisms (--anachronisms)

4. Build the project.

More resources

• SmartCode Documentation - User Guide (PDF), WebHelp, and Release Notes
