winIDEA RCU plugin: Pinpoint the cause of the last MCU reset

05-Feb-2026

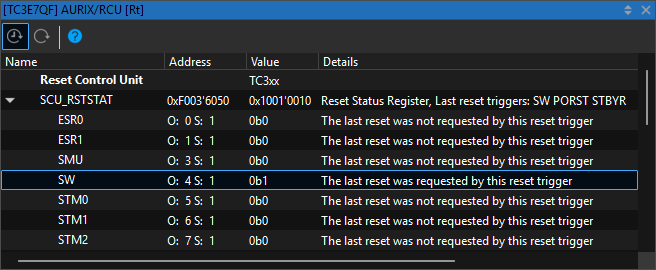

RCU is a separate window of the SoC AURIX view, which displays a list of RCU registers with according value and description. It is a user-friendly representation of the reset configuration and last reset source information.


Possible solution

1. Make sure the debug session is established.

2. Open View | AURIX | RCU.

In this example, the last reset happened because of a software-triggered reset, which can help you pinpoint the exact function in your source code that is initiating it. As you can see, RSTSTAT.SW bit is set.





More resources in winIDEA Help
